AE222

Overview

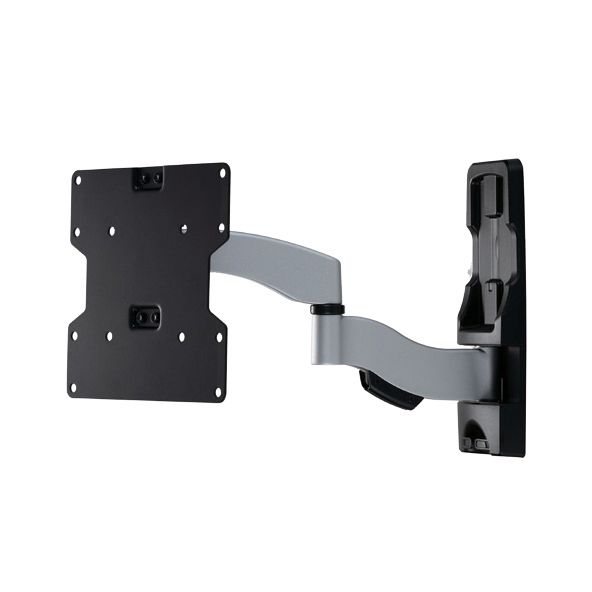

35mm Ultra Slim LED TV Wall Bracket, 200x200mm VESA

Compare Product

The AE222 is a LED wall bracket featuring 35mm ultra slim profile and designed with 3 pivot points and 2 arms, allowing wide angle of Swivel and tilt. It fits larger-sized displays of VESA 200x200mm available in the market and has the heavy duty Aluminum alloy construction. Smart cable management design at two-side channels make it easy to align cables in good order and comes with a slim profile to wall, giving a decor look at your home theater.

• 3 Pivot-pointed arms for optimal adjustment of free angles in your display
• +17/-15 degree free tilt angle
• +/-90 degree free swivel angle
• Smart Cable Management system
• Heavy duty Aluminum Alloy construction
• ExperTorque design for easy adjustment hinged by display
• VESA Compatible
• Designed for LED displays

• Dimensions : 297x285x35 mm
• Regulatory Compliance : SGS
• Mount Type : Wall
• Product Weight : 2.81 kg
• Product Weight : 6.20 lbs
• Screw Type : M8, M6, M5, M4
• ROHS Compliant : Yes
• Maximum Load Capacity : 25 kg
• Maximum Load Capacity : 55.12 lbs
• Construction : Steel/Aluminum Alloy
• Tilt (Plus) : 17 degrees
• Mounting Pattern (VESA) : 200x200mm
• Minimum Display Size : 558.80 mm
• Minimum Display Size : 22 in
• Maximum Display Size : 1143 mm
• Maximum Display Size : 45 in
• Swivel : +/-60 degrees
• Tilt (Minus) : 15 degrees
